Section size and height: The cross-sectional dimension of the standard section is 1.6×1.6m, and each section has a length of 2.8m.Main chord specification: The main chord is usually made of...

Dimension Specifications: The product specification is 2.0m × 2.0m × 3.0m.Material Specifications:Main chords: ∠200×26 angle steel (equal-angle steel with leg length 200mm and thickness 26mm).Diagonal braces: Φ89×10 round tubes (outer...

Dimension Specifications: Typically 2.0m × 2.0m × 3.0m.Material Specifications:Main chords: ∠200×20 angle steel (equal-angle steel with leg length 200mm and thickness 20mm).the diagonal braces are channel steel 100 back-to-back, and...

Dimension Specifications: Typically 2.0m × 2.0m × 3.0m.Material Specifications:Main chords: ∠200×20 angle steel (equal-angle steel with leg length 200mm and thickness 20mm).Diagonal braces: ∠100×10 angle steel (equal-angle steel with leg...

Dimension specifications: The common external dimensions are 2.0m in length, 2.0m in width, and 2.8m in height.Material and specification of main chords: It generally uses 180×12.5 square tubes as main...

Dimension specifications: The common dimensions are 1.8m in length, 1.8m in width, and 2.8m in height.Material and specification of main chords: Q355B square tubes with a size of 135×12 are...

This attachment frame is composed of two "C"-shaped fittings forming a square, with a pinned connection.

The bolt-embedded outrigger requires precise positioning of anchor bolts during foundation construction.Main chords: ∠200×26 angle steel (equal-angle steel with leg length 200mm and thickness 26mm).The height of the angle steel...

The bolt-embedded outrigger requires precise positioning of anchor bolts during foundation construction.

The tower crane is fixed to the foundation via embedded outriggers.Main chords: ∠200×26 angle steel (equal-angle steel with leg length 200mm and thickness 26mm).The height of the angle steel is...

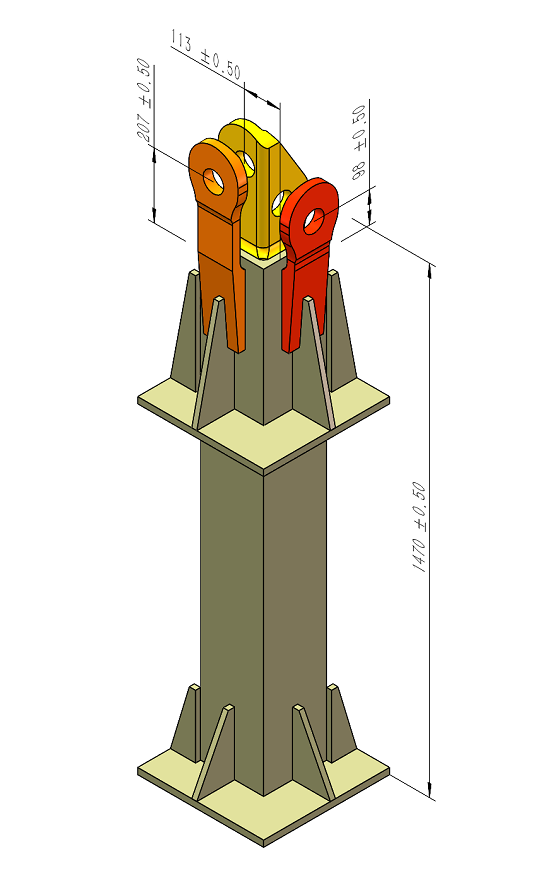

The conversion outrigger connects the foundation embedded parts to the tower standard section.

he connection between the mast-pull-frames and the building:a) The construction organization shall design the connection between the foundationsupport and building according to the support force provided in the attachmentarrangement from...
