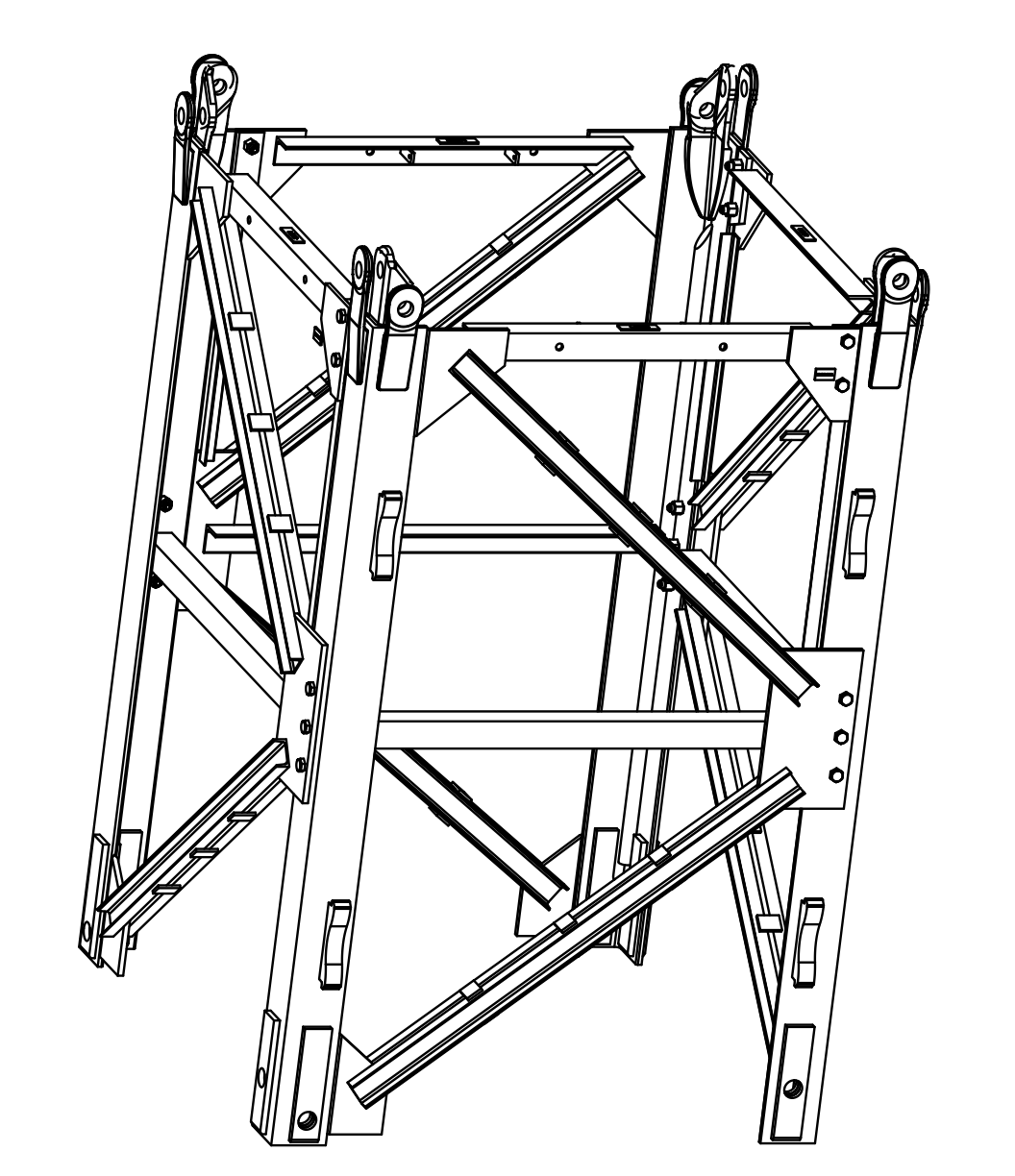

L68B1-tower section

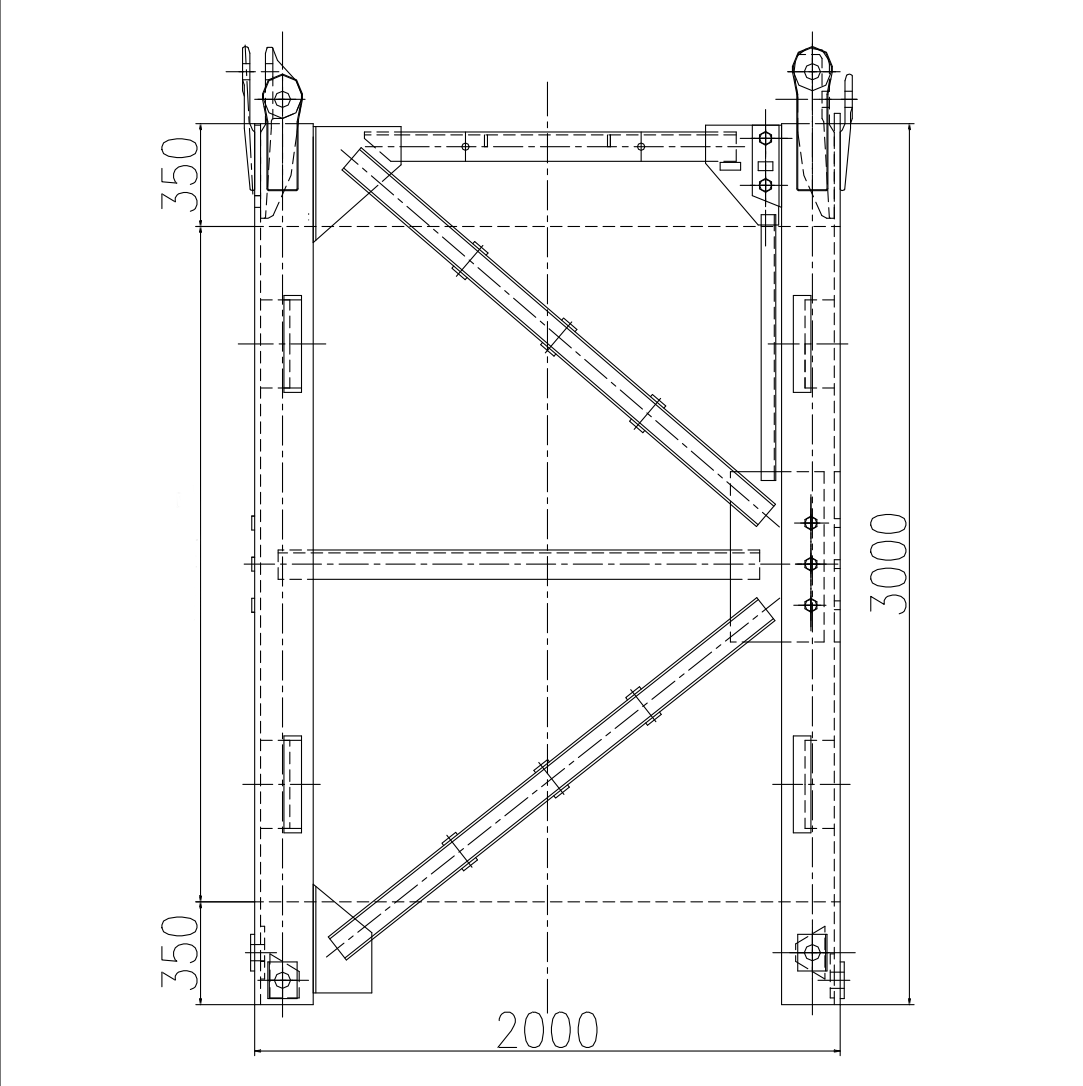

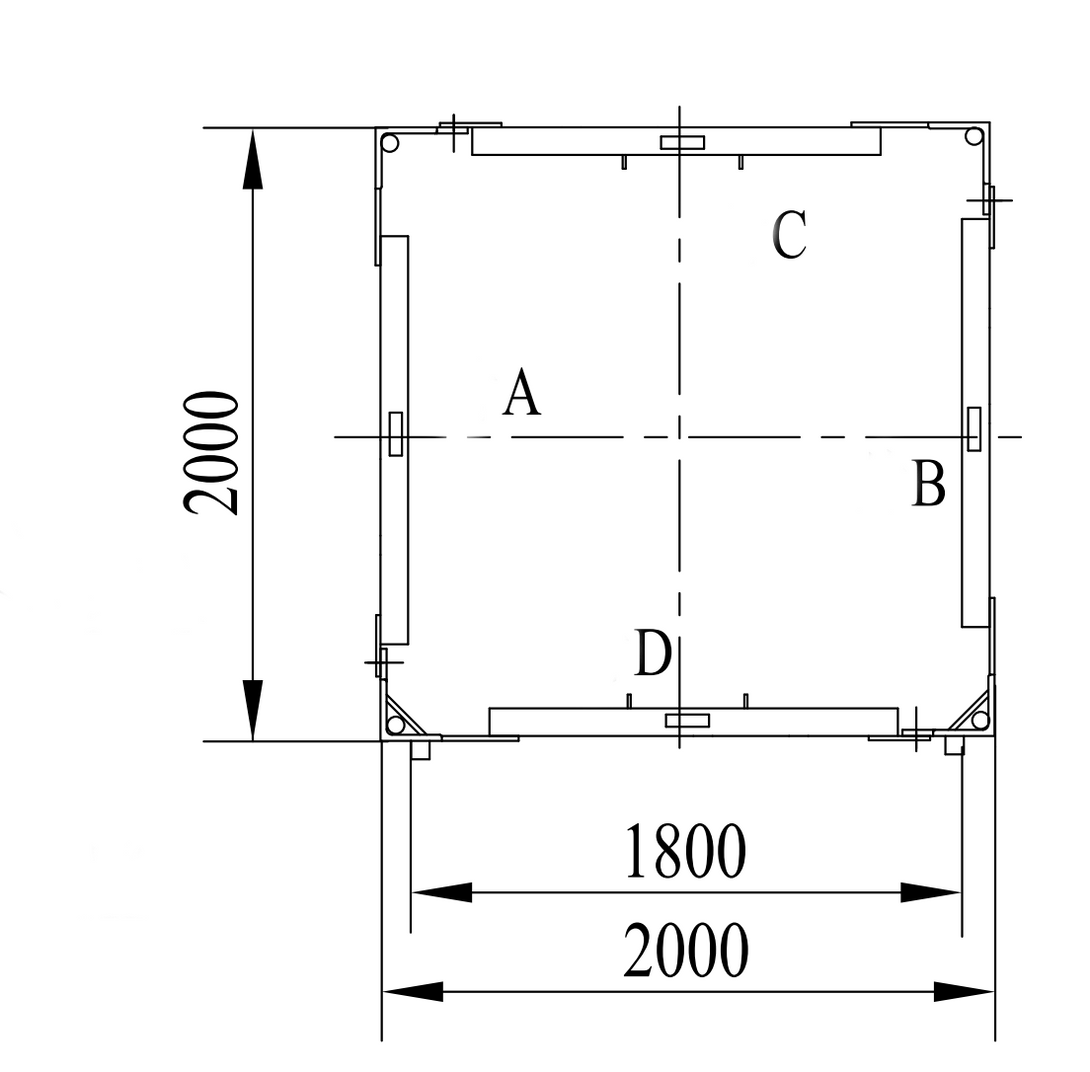

Dimension Specifications: Typically 2.0m × 2.0m × 3.0m.
Material Specifications:
Main chords: ∠200×20 angle steel (equal-angle steel with leg length 200mm and thickness 20mm).the diagonal braces are channel steel 100 back-to-back, and the vertical web members are ∠100×10 angle steel.Connection Method:

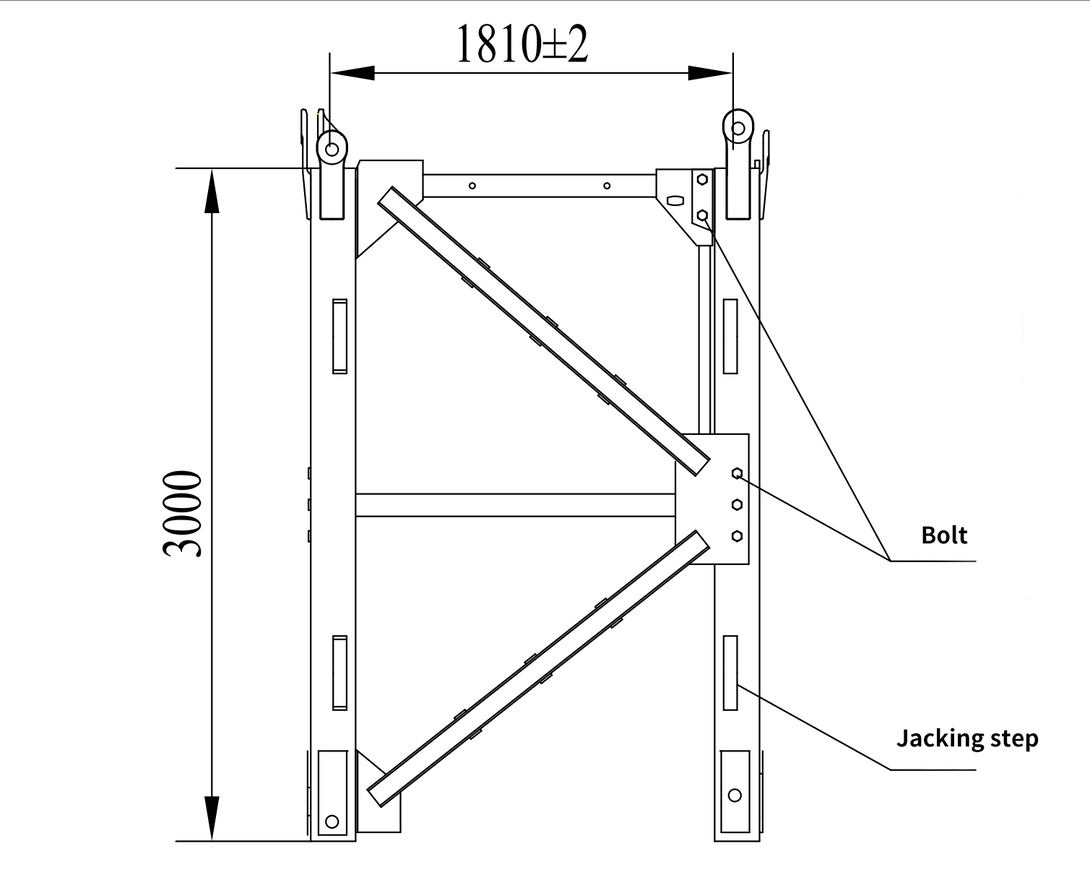

Connected by Φ55 pins, equipped with Φ20 safety pins. The assembly bolts for the mast section are M27×89 bolts with reamed holes.Features:
It is a fishplate-type segmental mast section, featuring convenient transportation and high interchangeability.
