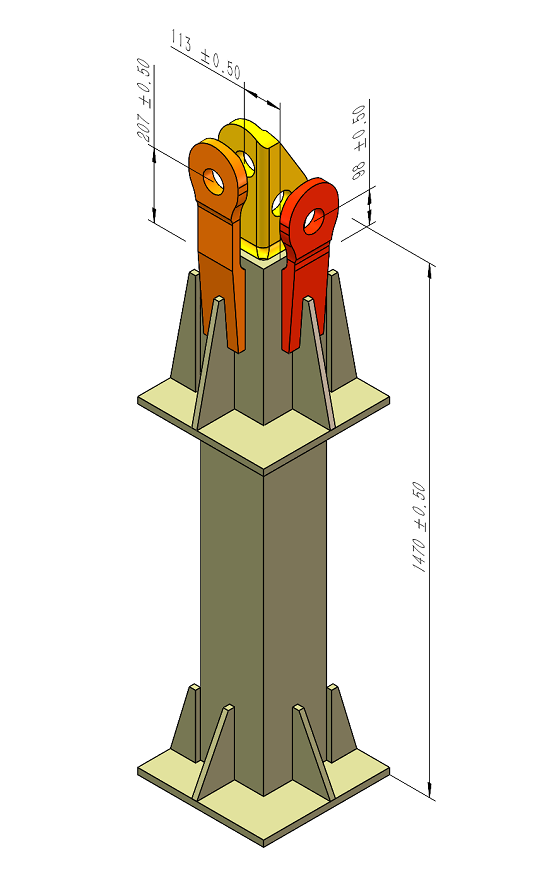

The tower crane is fixed to the foundation via embedded outriggers.The height from the angle - steel to the ground is 2075mm.Pin hole size: 75.

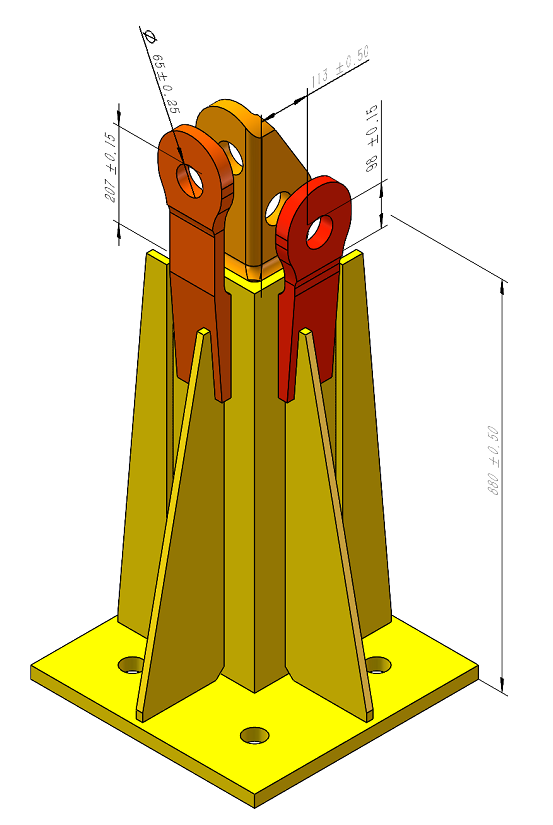

The tower crane is fixed to the foundation via embedded outriggers.The height from the angle - steel to the ground is 1640mm.Pin hole size: 75.

The tower crane is fixed to the foundation via embedded outriggers.Main chords: ∠200×20 angle steel (equal-angle steel with leg length 200mm and thickness 20mm).The height of the angle steel is...

The tower crane is fixed to the foundation via embedded outriggers.Main chords: ∠200×20 angle steel (equal-angle steel with leg length 200mm and thickness 20mm).The height of the angle steel is...

The tower crane is fixed to the foundation via embedded outriggers.The main chord generally adopts Q355B square tubes with a size of 135×12.

The tower crane is fixed to the foundation via embedded outriggers.Dimensions and embedding depth: The length of the embedded outrigger is 1250mm, and the embedding depth is 900mm.Connection method: There...
